Moore Bridge 3

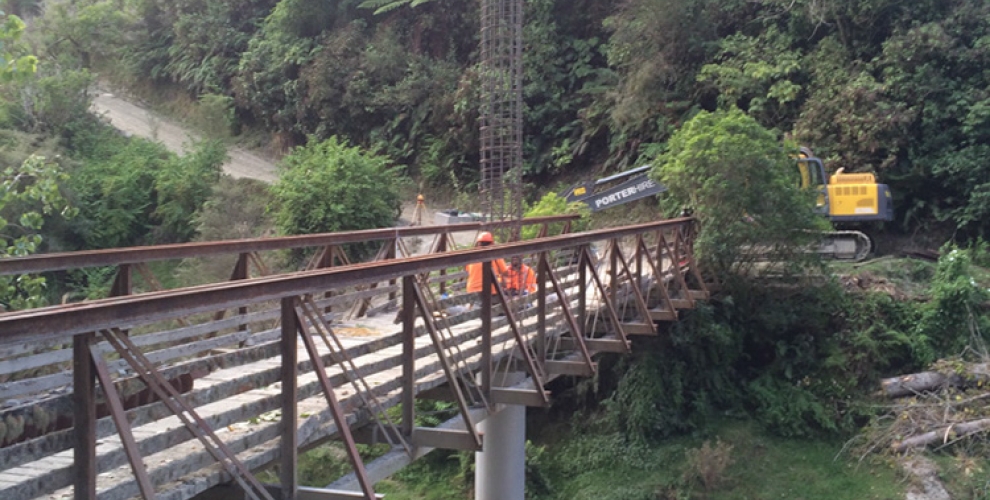

1.Moore Bridge Pier Preparation

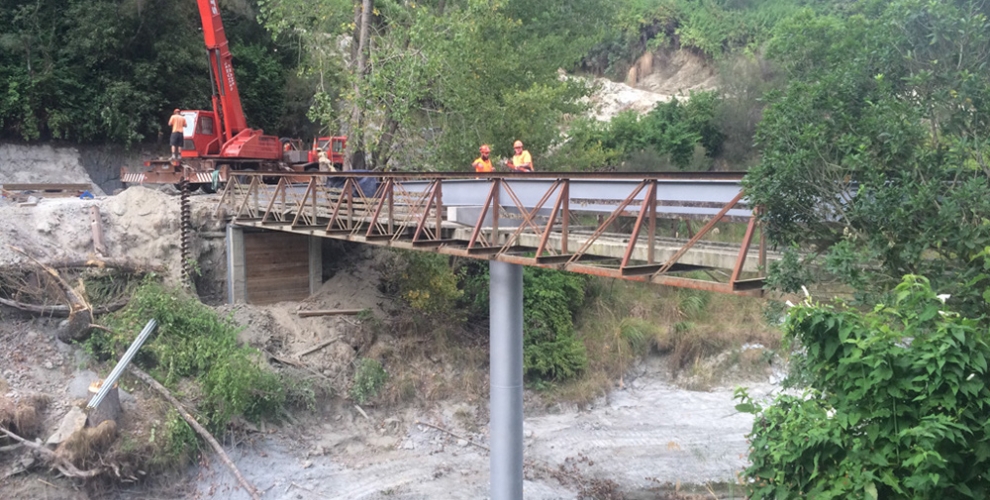

2.New Old Bridges

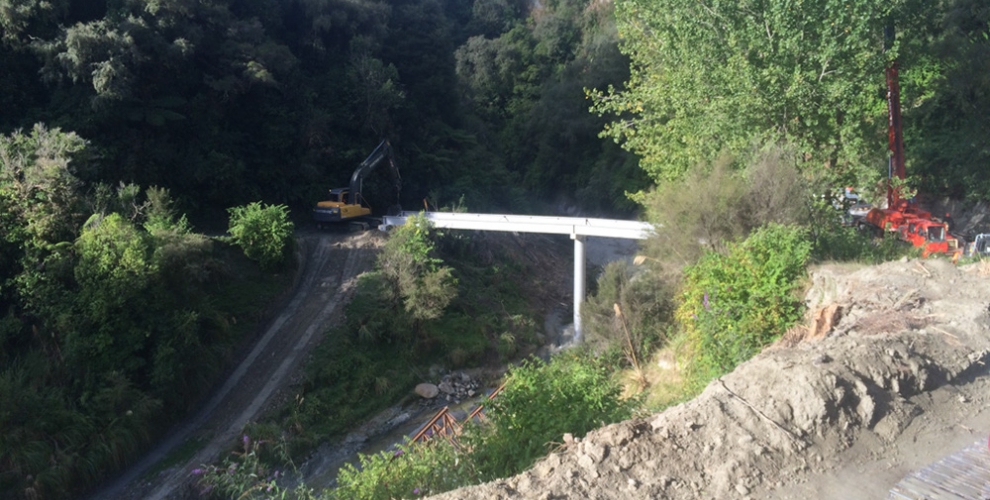

3.Moore Bridge Beams Finished

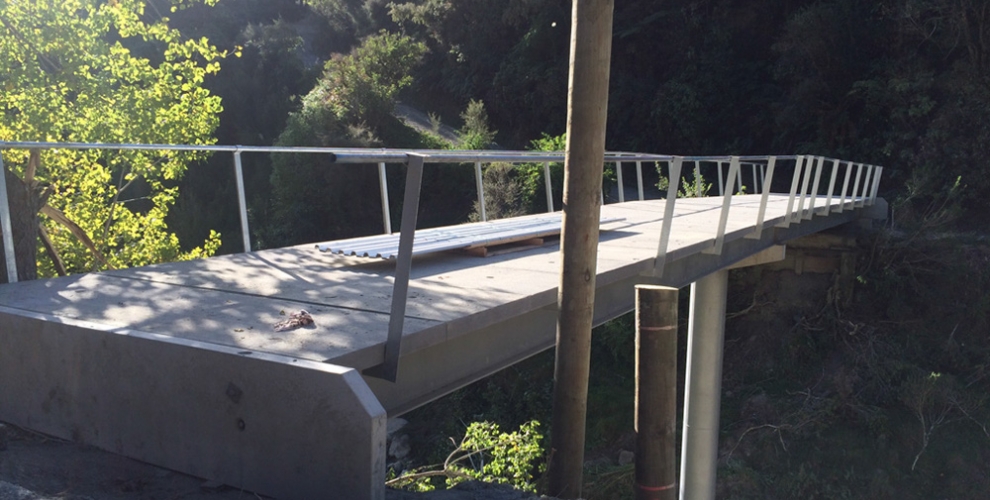

4.Nearing Completion

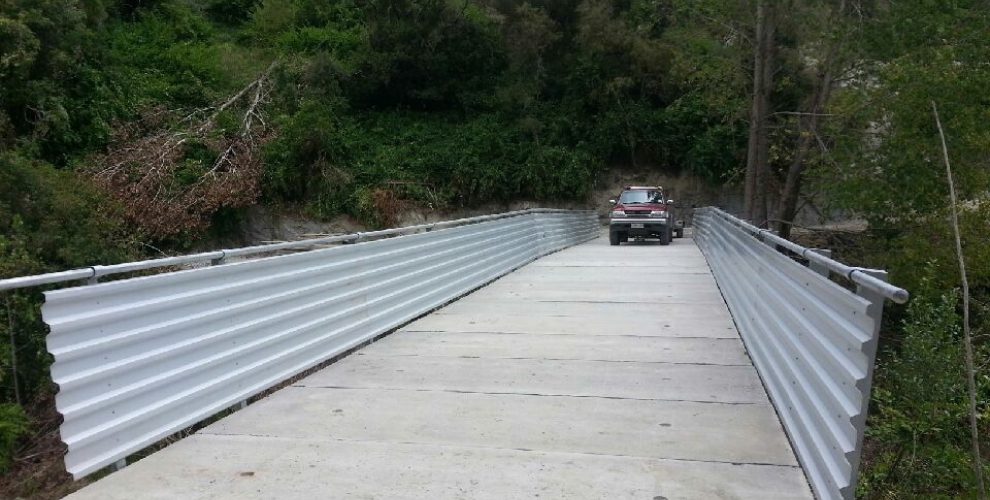

5.Finished Internal

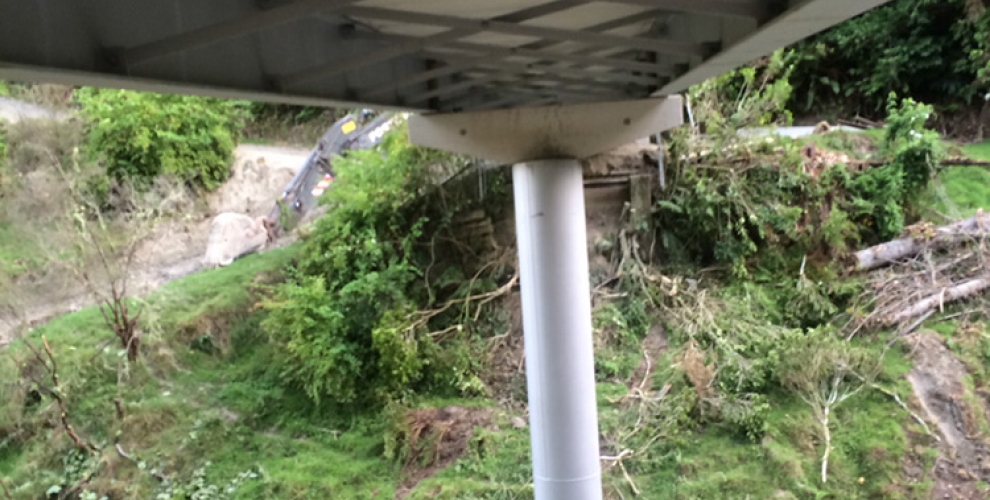

6.Finished Underneath

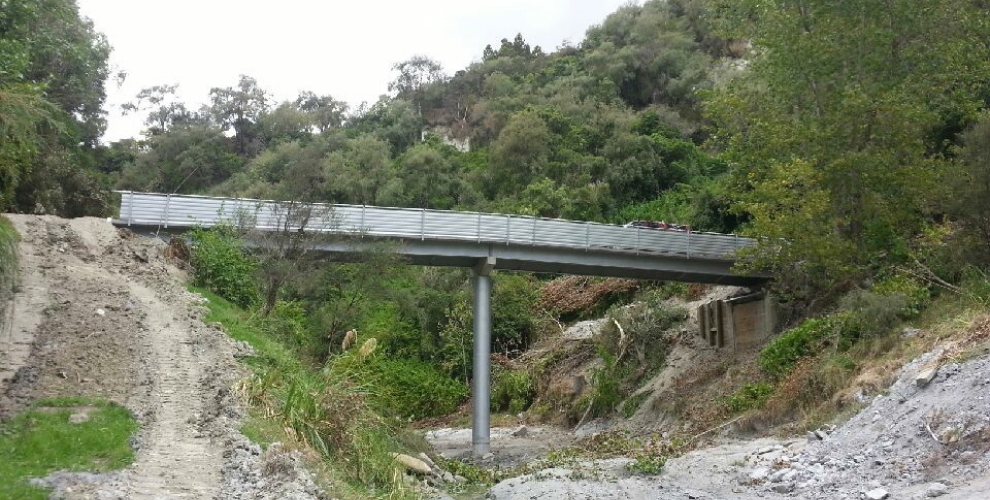

7.Moore Bridge Finished

Project Description

The third Moore Bridge project involved designing a replacement bridge for stock, pedestrian and vehicles.

Specs:

Bridge Type: Steel Beam with Precast Concrete Deck Panels
Total Length: 30m
Number of Spans: 2
Abutment Type: Piled Steel Columns and Precast Concrete Headwall
Pier Type: Reinforced Concrete Cylinder
Load Rating: Owt 24T
